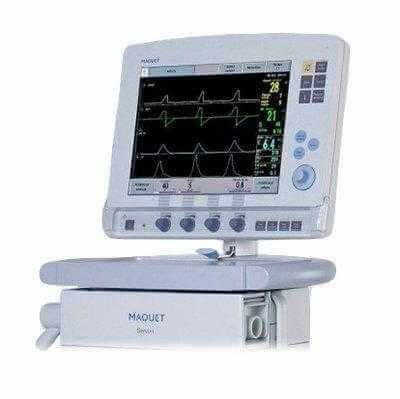

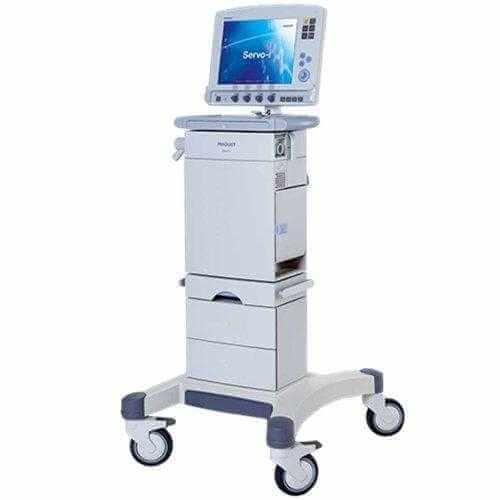

Refurbished Patient Ready Siemens Maquet Servo-i Ventilator

  • $8,999.99
  • Save $1,000

Call to order. Toll Free in the US: (844) 823-3800. For International, please call (708) 478-5161.
Will be in stock after

Product SKU: SERVO i -R

Maquet Servo-i Medical Ventilator for sale.

Condition: Refurbished Patient Ready

The Maquet SERVO-i ventilation platform is intended to cover age groups varying from neonatal, pediatric to adults. It allows you to choose different treatment options based on your patients’ needs. It features an easy to learn and use system.

Mechanical Ventilation

  • Use of a machine to induce alternating inflation and deflation of the lungs with air
  • Regulates Oxygen/CO2 levels in blood
  • Volume and Pressure of Air forced into Lungs is controlled
  • Has to meet varying demands of patient ventilation

Modes of Ventilation

  • Volume control
  • Pressure control
  • CPAP/BIPAP
  • Support Ventilation
  • Combination Of Modes
  • Intermittent mandatory Ventilation

Components of Ventilator System

  • Compressed Gas Source
  • Patient Breathing Circuit
  • Mixer/Blender
  • Hoses
  • Optional monitoring
  • O2
  • Volume

Classification

  • Driving Mechanism
  • Pneumatic (Mark 7)
  • Electronic (Siemens 900C)Function
  • Respirators: Short time ventilator support
  • Conventional Ventilators :long term, advance Support Portability
  • Transport/battery backup Patients Adult Pediatric Or Neonatal

Technologies

  • Turbine technology
  • High frequency Oscillatory ventilation
  • Modes IMV, SIMV, PC, VC, S/T etc.
  • MRI Compatible (Non ferromagnetic components)
  • Flow Sensors- Volume Measurements
  • Pressure transducers

Dimensions

  • Height: 51.8 In (131.5 cm)
  • Width: 22 In (56 cm)
  • Depth: 25.2 In (64 cm)
  • Weight: 44.1 lbs (20 kg)

General

  • Method of triggering: Flow, pressure and Edi (optional)
  • Max. operating pressure: Approximately 115 cmH2O
  • Bias flow: 2 l/min

Inspiratory Channel

  • Pressure drop: Max. 6 cmH2O at a flow of 1 l/s
  • Internal compressible factor: Max. 0.1 ml/cmH2O
  • Gas delivery system: Microprocessor controlled valve
  • Inspiratory flow range:
    • Adult: 0 to 3.3 l/s
    • Infant: 0 to 0.55 l/s

Expiratory Channel

  • Pressure drop: Max. 3 cmH2O at a flow of 1 l/s
  • Internal compressible factor: Max. 0.1 ml/cmH2O
  • PEEP regulation: Microprocessor controlled valve
  • Rise Time, Expiratory Flow Measurement: <12 ms for 10 – 90 % response at flow of 0.05 – 3.2 l/s
  • Expiratory flow range: 0 to 3.2 l/s

Screen

  • Type: TFT-LCD module
  • Size: 31 cm (12.1”) diagonal
  • Viewing area: 246.0 x 184.5 mm

Operating Conditions

  • Operating temperature: +10 to +40ºC
  • Relative humidity: 15 to 95% non-condensing
  • Atmospheric pressure: 660 to 1060 hPa
  • Lowest pressure in breathing system: –400 cmH2O

Power Supply

  • Power supply, automatic range selection
    • 100 – 120 V AC ±10%
    • 50 – 60 Hz
    • 220 – 240 V AC ±10%
    • 50 – 60 Hz
  • Plug-in battery module
    • Battery backup: Two battery modules are delivered with the ventilator.
    • 50 – 60 Hz
    • 220 – 240 V AC ±10%
    • 50 – 60 Hz
  • Battery capacity: Rechargeable, 12 V, 3.5 Ah each
  • Recharge time: Approximately 3 h/battery
  • Battery backup time: At least 3 h, when using six batteries.
  • External 12 V DC: 12.0 V – 15.0 V DC, 10 A
  • Max power consumption
    • At 100 – 120 V: 2 A, 190 VA, 140 W
    • At 220 – 240 V: 1 A, 190 VA, 140 W

Invasive Ventilation

  • Inspiratory tidal volume

    • Adult 100–4000 ml
    • Infant 2–350 ml
  • Inspiratory flow ≤200 l/min
  • PEEP 0–50 cmH2O
  • Pressure above PEEP

    • Adult 0– (120-PEEP) cmH2O
    • Infant 0 –(80-PEEP) cmH2 O

Non-Invasive Ventilation

  • PEEP 2–20 cmH2O
  • Pressure above PEEP 0– (62-PEEP) cmH2 O
  • Leakage compensation

  • Adult
    • Inspiratory, up to 200 l/min
    • Expiratory, up to 65 l/min
  • Infant
    • Inspiratory, up to 33 l/min
    • Expiratory, up to 25 l/min
    • Nasal CPAP, up to 20 l/min

Connectivity

  • External device interfaces 2xRS232, remote alarm, MCare remote service
  • IHE technical framework MSync HL7 converter
